New Top Hat Cleats

08/08/2019

Rondo Top Hat Cleats enable fixing to structural steel or masonry/concrete substartes as well as to Steel Stud Framing and allow adjustment to plumb and level.

They are available in two depths of 35 and 55mm and are manufactured from 1.9BMT G2 Z275 Bluescope Steel.

The images below show the basic fixing details for both the cleats and the attaching of the Top Hat profiles.

Cleat 005 in situ
VERTICAL METHOD TO STEEL STUD FRAMING

Cleat Diagram E
CLEAT TO CONCRETE

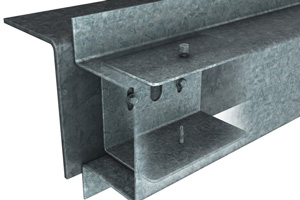

Cleat Diagram F
CLEAT TO STEELWORK

Full fixing details for the Rondo Top Hat Cleats are to be found in the Rondo Design Manual

For more information contact your local Rondo Sales Office on 1300-36-RONDO (1300-36-7663).
