Rondo Top Hats can be used internally or externally and on vertical fascias and soffits. They are often used where there is a higher wind loading or where heavy duty sheeting is to be installed.
Steel Angles can be used to strengthen internal corners of façade systems and steel framing requirements for facade systems.
PRODUCT DATA SHEET
Click below to download our Product Data Sheet:
Download
CAD FILES
Assisting you with the design process, we’ve put together a library of DXF files for most of our products.
DOWNLOAD INDIVIDUAL CAD FILES| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION | |
|---|---|---|---|---|
|
530 |  |

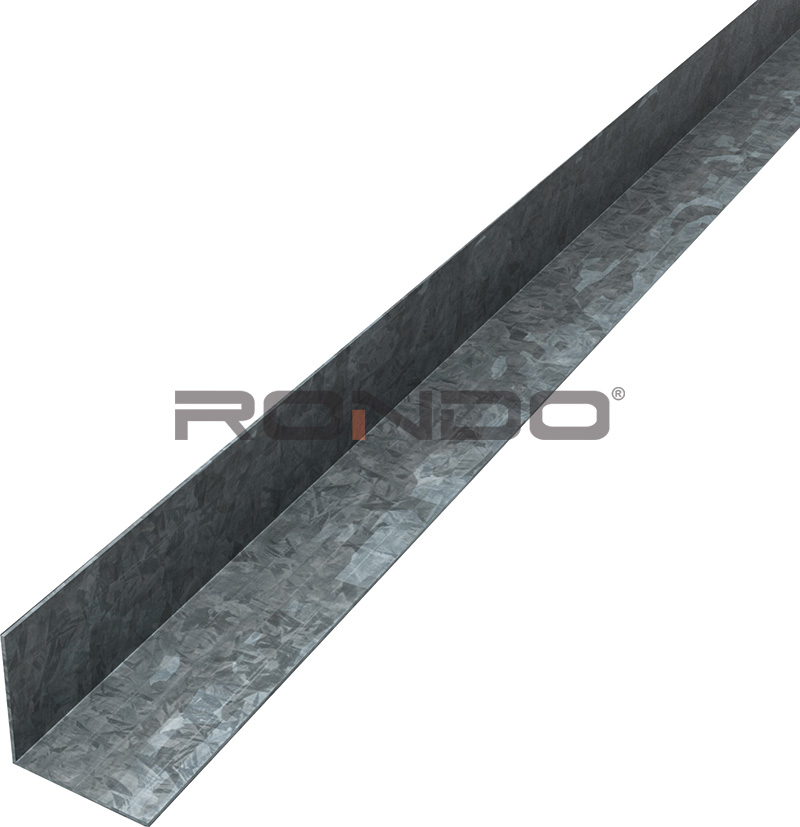

50mm (h) x 30mm (w) Heavy Duty Angle |
|
|

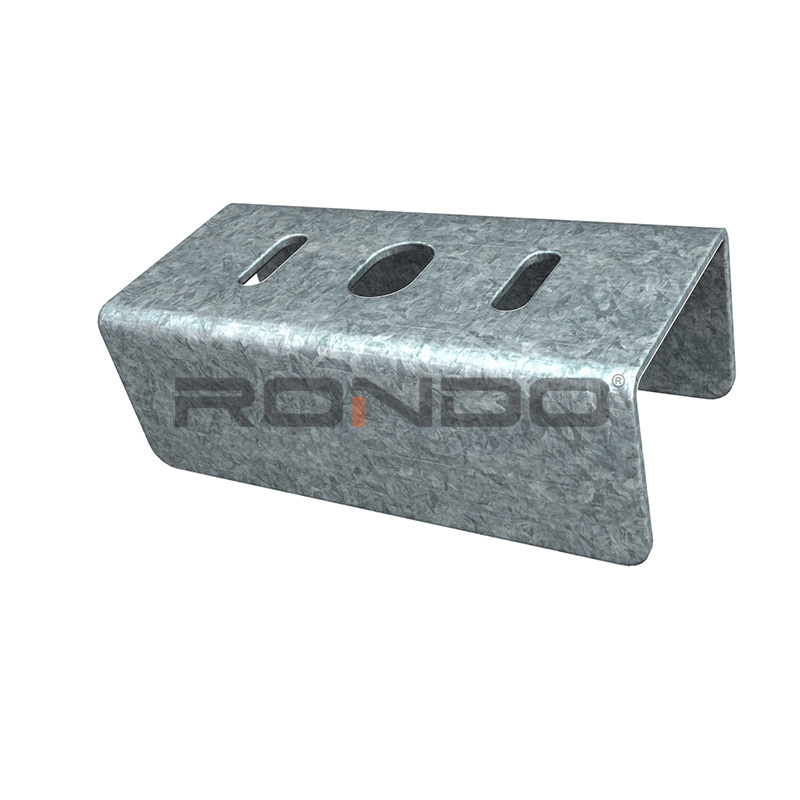

535L | |

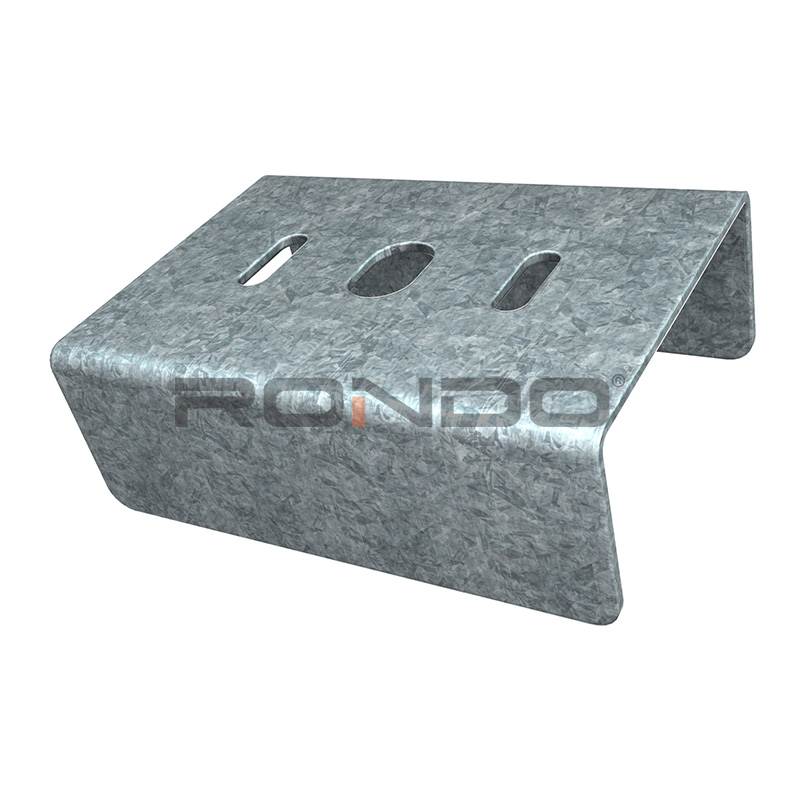

45mm (w) x 35mm (h) Top Hat Cleat to suit 50mm face Top Hat Z450 1.9 |
|
|

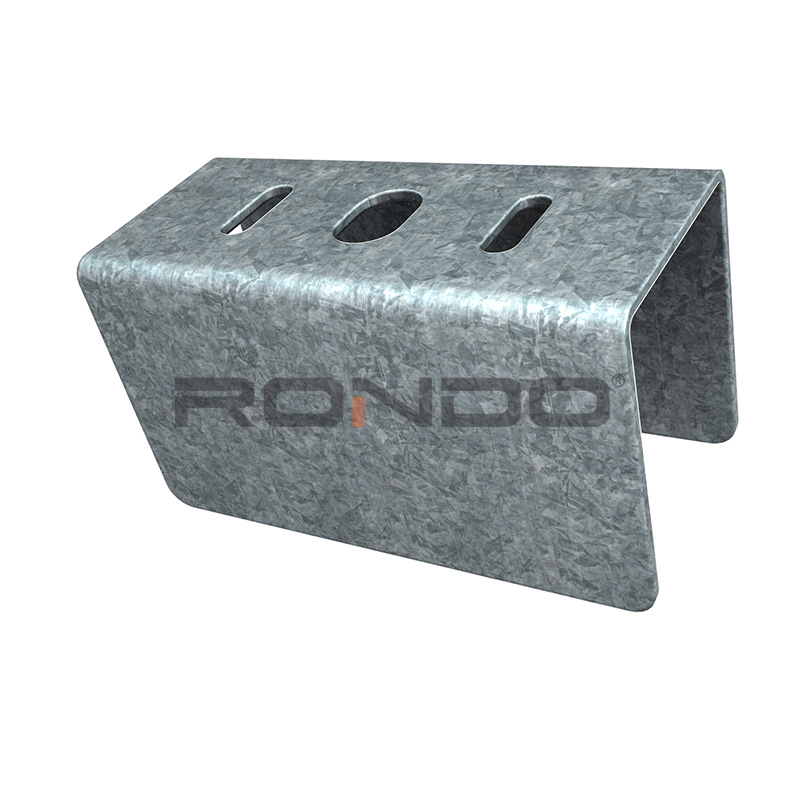

550L | |
45mm (w) x 55mm (h) Top Hat Cleat to suit 50mm face Top Hat Z450 1.9 |
|
|
552 | |
25mm (w) x 25mm (h) Angle |
|
|
|
553 | |

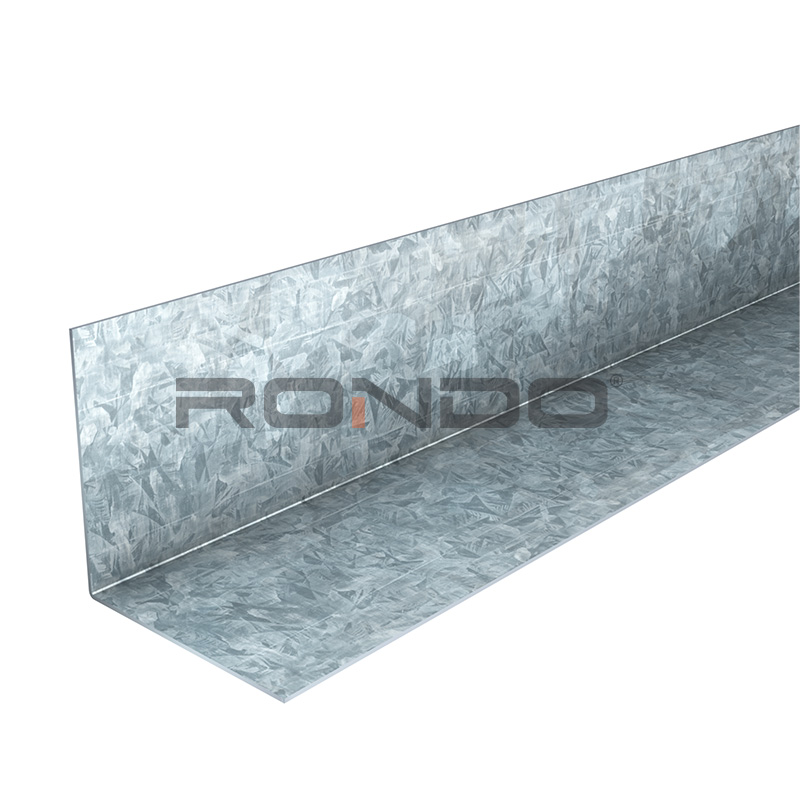

35mm (h) x 35mm (h) Angle |
|
|
|
554 | |
50mm (h) x 50mm (h) Angle |
|
|

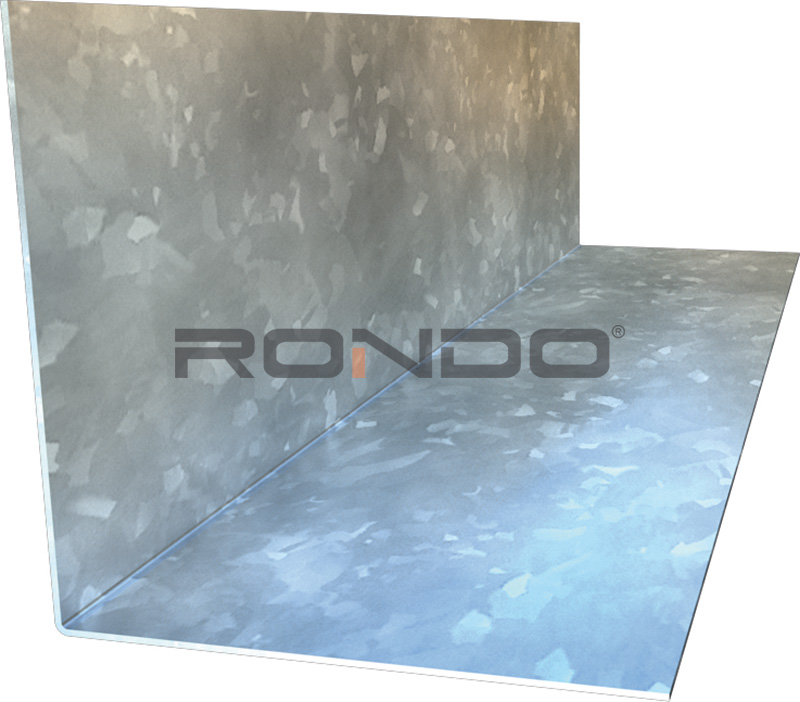

555 | |
75mm (h) x 75mm (w) Angle |
|
|
|
556 | |
75mm (h) x 75mm (w) Heavy Duty Angle |
|
|
|
557 | |
100mm (h) x 100mm (w) Angle |
|
|
|
558 | |
100mm (h) x 100mm (w) Heavy Duty Angle |
|
|
|
559 | |
50mm (w) x 50mm (h) Steel Angle suitable for Speedpanel |
|
|

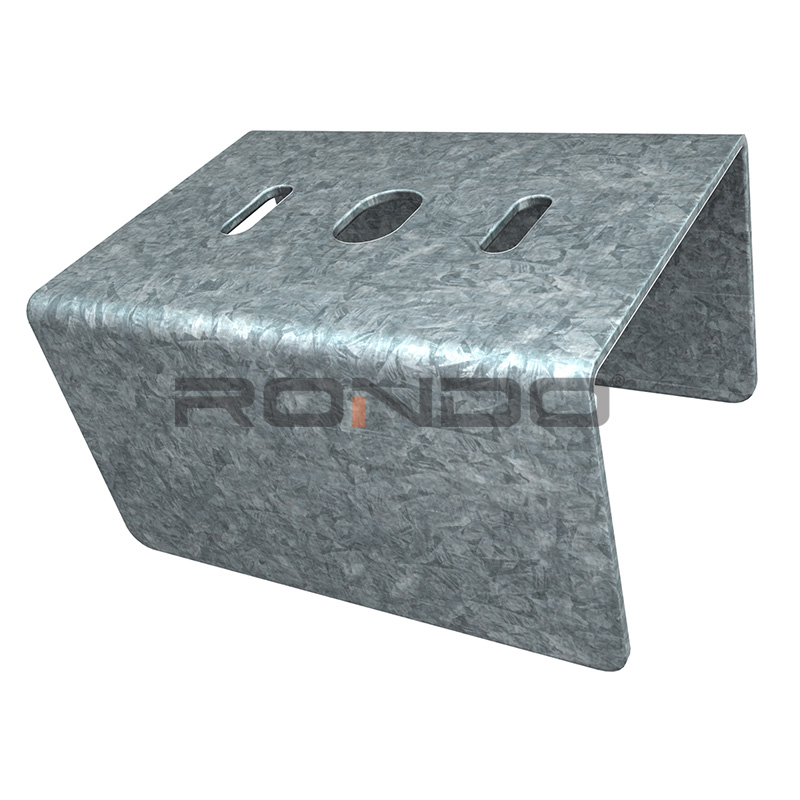

735L | |
70mm (w) x 35mm (h) Top Hat Cleat to suit 75mm face Top Hat Z450 1.9 |
|
|
750 | |
70mm (w) x 55mm (h) Top Hat Cleat to suit 75mm face Top Hats |
|
|
890 | |
50mm (face) x 15mm (h) x 18mm (Flange) Top Hat with Z450 1.15 |
|
|
|
891 | |
50mm (face) x 25mm (h) x 18mm (flange) Top Hat with Z450 1.15 |
|
|
|
892 | |
50mm (face) x 35mm (h) x 18mm (flange) Top Hat with Z450 1.15 |
|
|
|
894 | |
50mm (face) x 50mm (h) x 18mm (flange) Top Hat with Z450 1.15 |
|
|
|
H515 | |
50mm (face) x 15mm (h) x 15mm (flange) - Top Hat |
|
|
|
H525 | |
50mm (face) x 25mm (h) x 18mm (flange) - Top Hat |
|
|
|
H535 | |
50mm (face) x 35mm (h) x 18mm (flange) - Top Hat |
|
|
|
H545 | |
50mm (face) x 45mm (h) x 19mm (flange) - Top Hat |
|
|
|
H550 | |
50mm (face) x 50mm (h) x 18mm (flange) - Top Hat |
|
|
|
H560 | |
50mm (face) x 60mm (h) x 18mm (flange) - Top Hat |
|
|
H715 | |

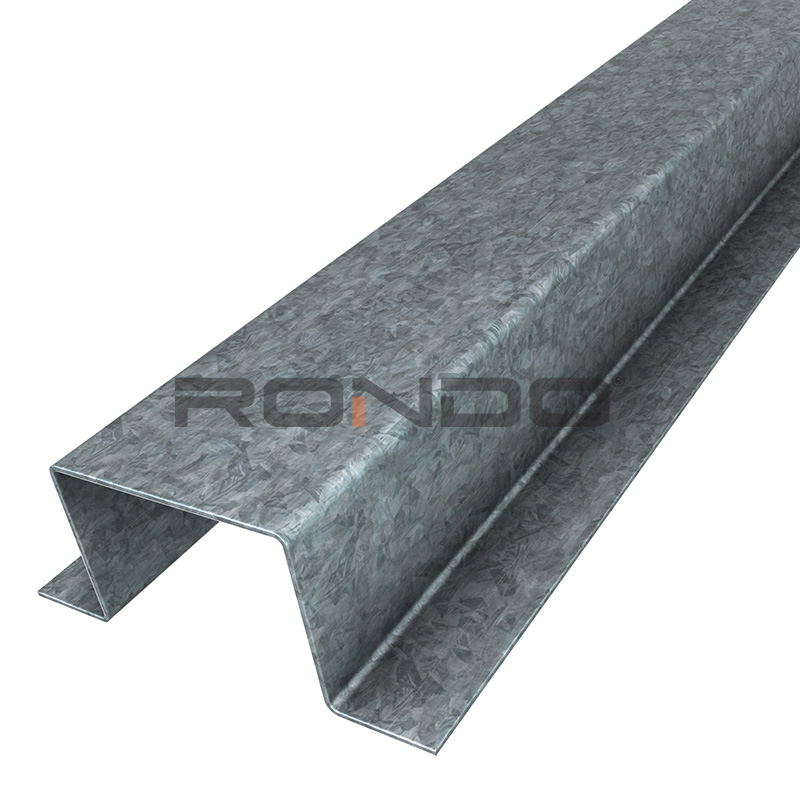

75mm (face) x 15mm (h) x 17mm (flange) Top Hat |
|
|
|
H725 | |
75mm (face) x 25mm (h) x 19mm (flange) Top Hat |
|
|
|
H735 | |
75mm (face) x 35mm (h) x 20mm (flange) Top Hat |
|
|
|
H750 | |
75mm (face) x 50mm (h) x 20mm (flange) Top Hat |
|
|
HB50 | |

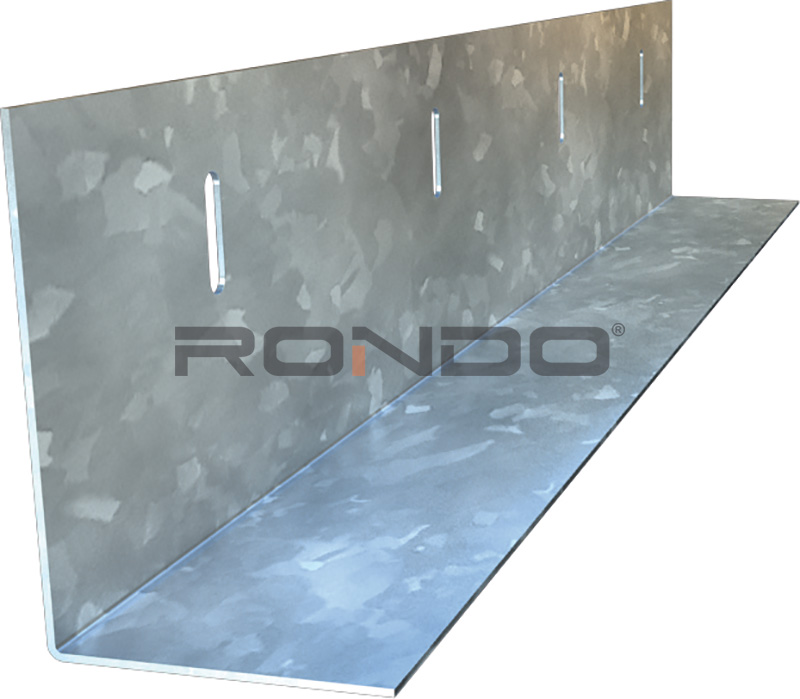

50mm (h) x 50mm (w) Slotted Angle |
|
|
|
HB75 | |
75mm (h) x 50mm (w) Slotted Angle |
|
|
|
M515 | |
50mm (face) x 15mm (h) x 18mm (flange) Top Hat |
|
|
|
M525 | |
50mm (face) x 25mm (h) x 19mm (flange) Top Hat |
|
|
|
M535 | |
50mm (face) x 35mm (h) x 19mm (flange) Top Hat |
|
|
|
M545 | |
50mm (face) x 45mm (h) x 18mm (flange) Top Hat |
|
|
|
M550 | |
50mm (face) x 50mm (h) x 19mm (flange) Top Hat |
|
|
|
M560 | |
50mm (face) x 60mm (h) x 18mm (flange) Top Hat |
|
|
|
M715 | |
75mm (face) x 15mm (h) x 20mm (flange) Top Hat |
|
|
|
M725 | |
75mm (face) x 25mm (h) x 19mm (flange) Top Hat |
|
|
|
M735 | |
75mm (face) x 35mm (h) x 19mm (flange) Top Hat |
|
|
|
M750 | |
75mm (face) x 50mm (h) x 20mm (flange) Top Hat |
|
|

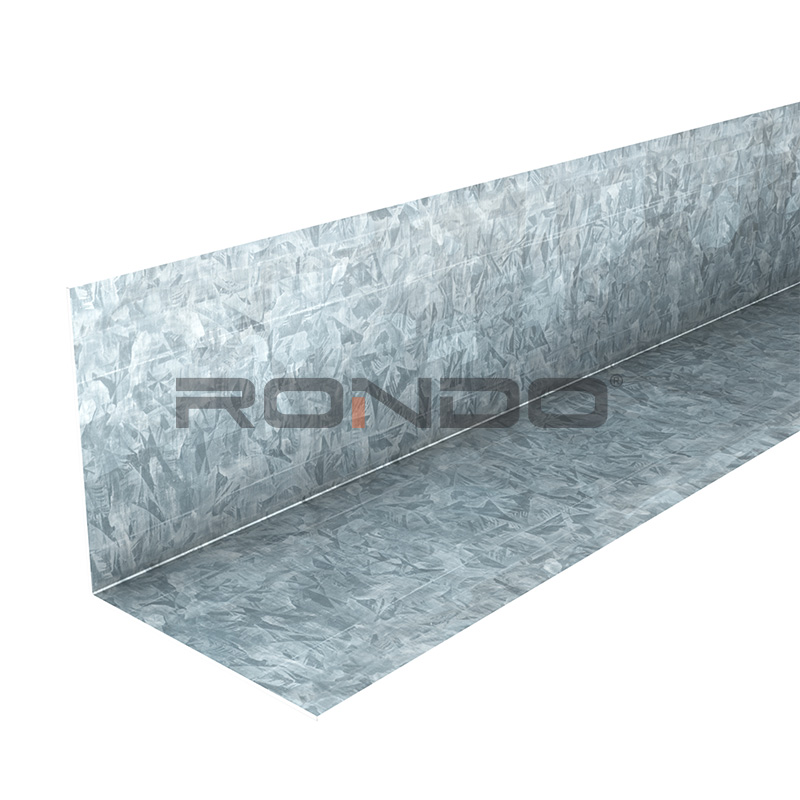

SA12 | |
40mm (h) x 40mm (w) Wall Angle |
