Shaftwall One Way Erected System

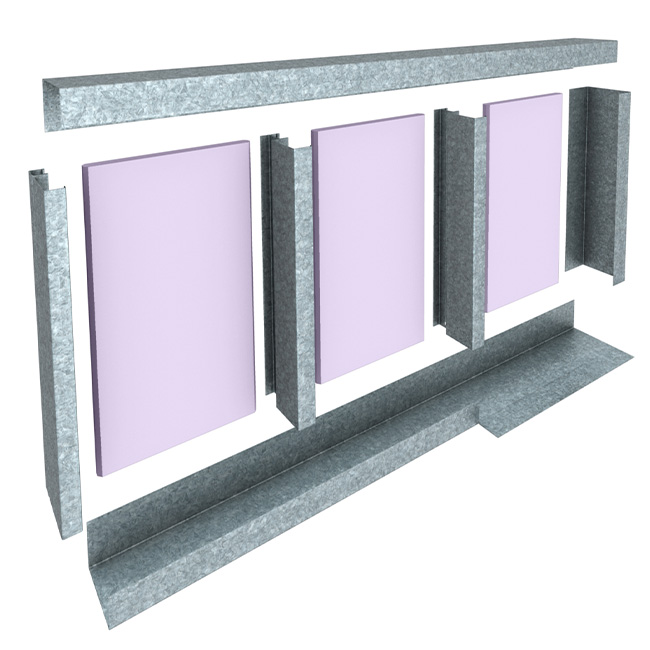

The Rondo SHAFTWALL is a one-way erected wall system that is suitable for both fire-rated and sound-rated applications. The system is designed to encase lift shafts, stairwells and service ducting in low and high-rise construction areas.

PRODUCT FEATURES

  • Fire-rated and Acoustic Design
    Available for Fire-rated and Acoustic applications
  • Simple Integration
    Screw and adhesive fixed so there is no need for welding or bolting
  • Efficient
    Reduces labour time
  • INTRODUCTION TO OUR SHAFTWALL SYSTEM

    The Rondo SHAFTWALL is a one-way erected wall system that is suitable for both fire-rated and sound-rated applications. The system is designed to encase lift shafts, stairwells and service ducting in low and high-rise construction areas.

  • ADVANTAGES
    • Rapid installation with no need to gain access within the shaft.
    • The SHAFTWALL System is most appropriate for lift shafts and stairwells as well as service ducts.
    • All components are screw and adhesive fixed so there is no need for welding or bolting, saving labour time.
    • Rondo SHAFTWALL System are both acoustic and fire rated.

Resources

PRODUCT DATA SHEET

Shaftwall One Way Erected System

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

View Rondo Projects

CAD FILES

Shaftwall One Way Erected System CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

ORDER FORM

Inspire Door Jambs Order Form

Fill out the order form and send to your trusted Rondo stockist.

DOWNLOAD

Components

IMAGE PART NUMBER CAD FILE DESCRIPTION SAVE
Channel 341 Persp 2023 341

28mm (w) x 60mm & 40mm (uneven leg) 'J' Track
BMT: 0.55 | Stock Pack: 96 | Sub Pack: 4
Available Lengths: 3000mm
570, 572, 574, 590, 592, 594 CH Stud 570

64mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 3000mm, 3600mm
570, 572, 574, 590, 592, 594 CH Stud 572

64mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.90 | Stock Pack: 50 | Sub Pack: 1
Available Length: 4500mm
E Stud 574

64mm (w) x 26mm (h) ‘E’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 3000mm, 3600mm
578, 598 J Runner Track 578

64mm (w) x 57mm & 25mm (uneven leg) ‘J’ Runner Track to suit 570/572/574 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Available Length: 3000mm
579, 599 Deflection Head Track 579

64mm (w) x 75mm & 50mm (uneven leg) Deflection Head Track to suit 570/572/574 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm
570, 572, 574, 590, 592, 594 CH Stud 590

102mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 50 | Sub Pack: 1
Special Order Lengths: 3000mm, 3600mm, 4300mm
570, 572, 574, 590, 592, 594 CH Stud 592

102mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.90 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm, 3600mm, 5500mm
570, 572, 574, 590, 592, 594 CH Stud 594

102mm (w) x 26mm (h) ‘E’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 100 | Sub Pack: 1
Special Order Lengths: 3000mm, 3600mm, 4300mm
578, 598 J Runner Track 598

102mm (w) x 75mm & 25mm (uneven leg) ‘J’ Runner Track to suit 590/592/594 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Available Length: 3000mm
579, 599 Deflection Head Track 599

102mm (w) x 75mm & 50mm (uneven leg) Deflection Head Track to suit 590/592/594 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm
