The Rondo SCREWFIX® Concealed Ceiling System is a lightweight grid that provides the structure for a flush or featured finish to your plasterboard ceiling. It can be direct-fixed or fully suspended to accept screw fixed lining boards such as plasterboard, fibrous plaster and fibre cement. The SCREWFIX® System can also be used to as a framework to line virtually any existing wall or substrate.
SCREWFIX® Concealed Ceiling System
PRODUCT FEATURES
Resources
CAD FILES
SCREWFIX® Concealed Ceiling System CAD FILES
Assisting you with the design process, we’ve put together a library of DXF files for most of our products.
DOWNLOAD INDIVIDUAL CAD FILES
ORDER FORM

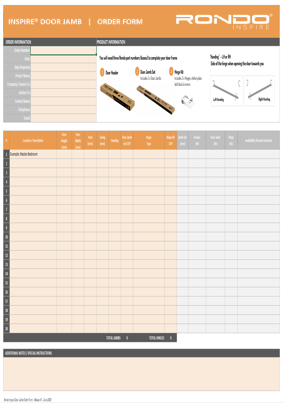

Inspire Door Jambs Order Form
Fill out the order form and send to your trusted Rondo stockist.
DOWNLOADComponents
| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION | SAVE | |
|---|---|---|---|---|---|
|

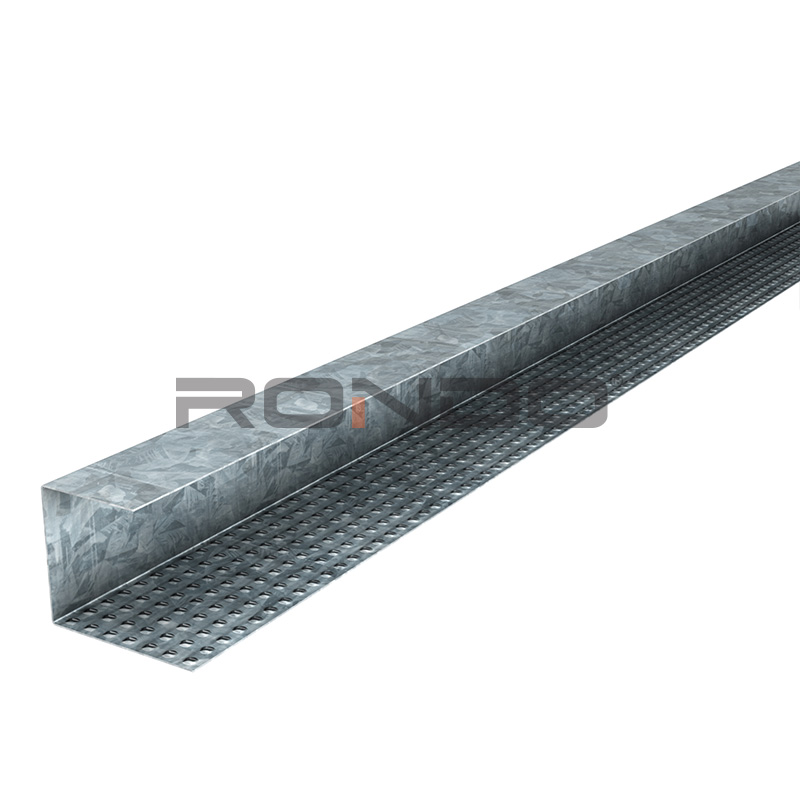

F24 |
29mm x 24mm Perimeter Channel |
|||
|

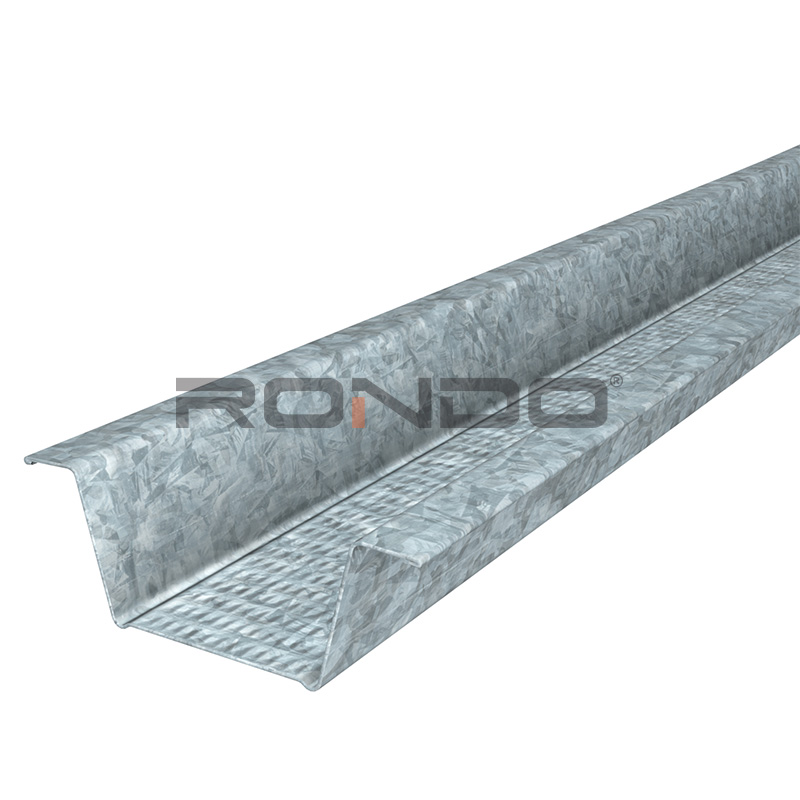

F37 |
37mm x 23mm Furring Channel |
|||
|

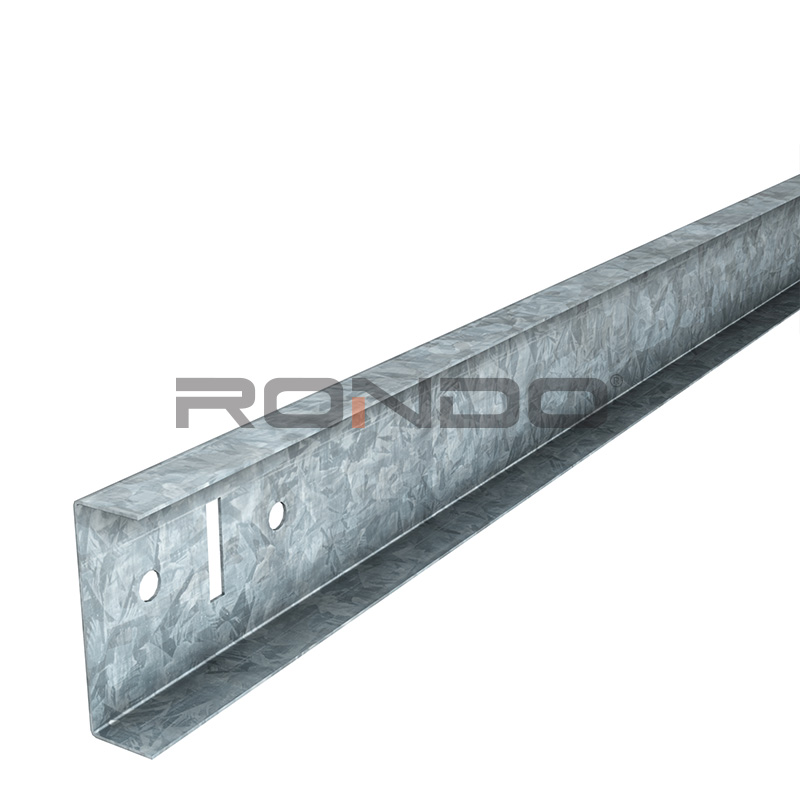

F38 |
38mm x 12mm Primary 'C' Channel |
|||
|

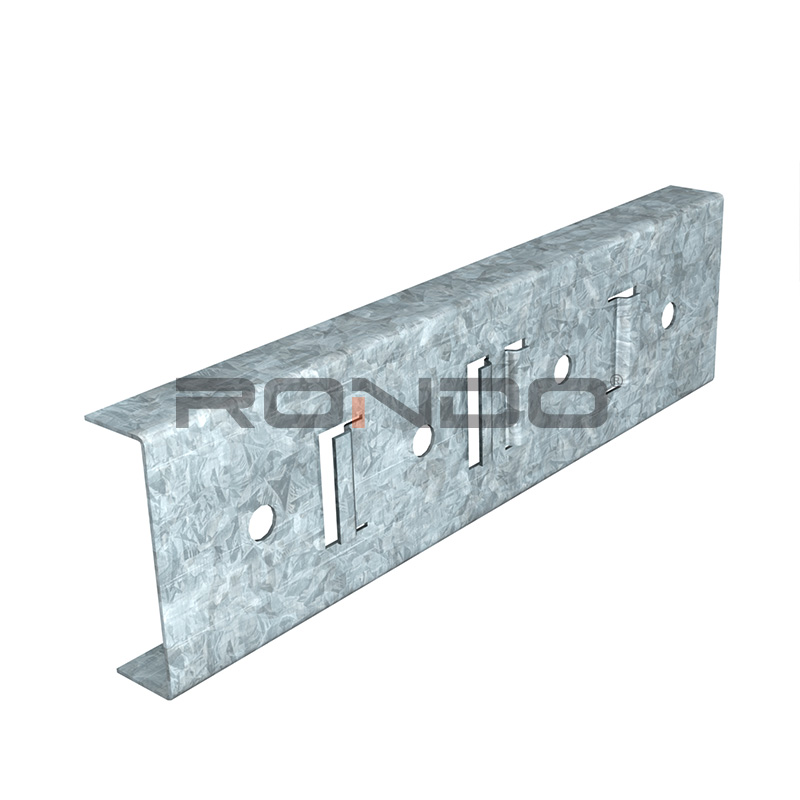

FCCC |
C Channel Joiner – 37mm x 134mm |
|||
|

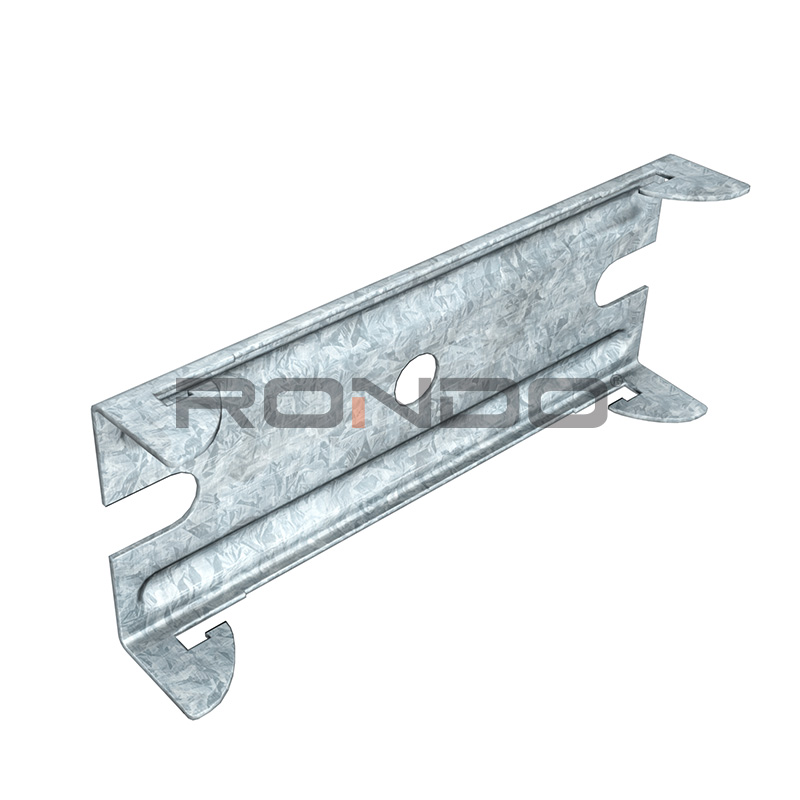

FCMC |
Masonry Clip |
|||
|

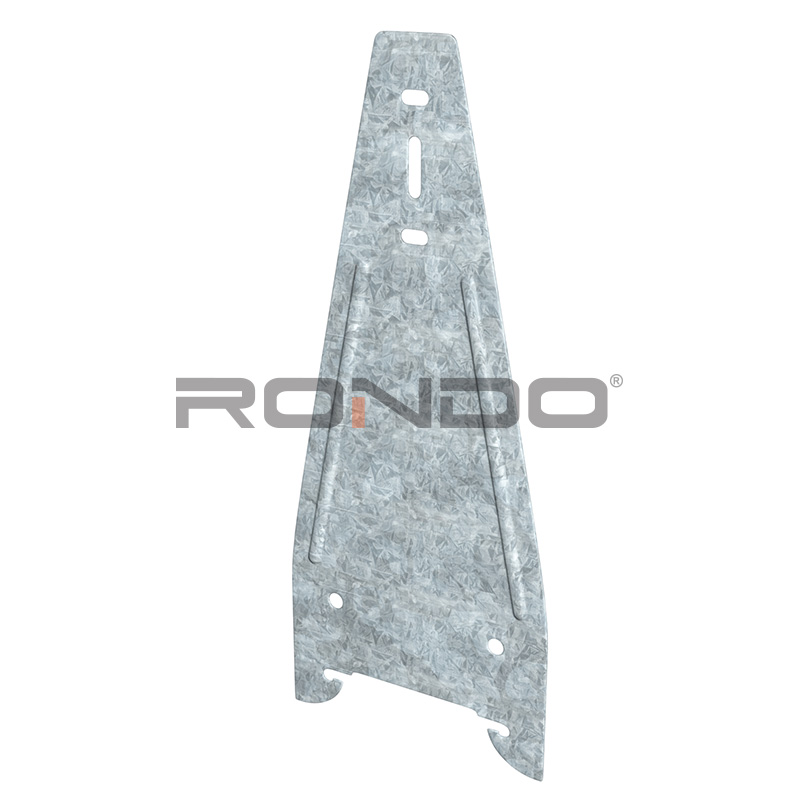

FDFL |
37mm Direct Fix Bracket (Long) – 37mm |
|||
|

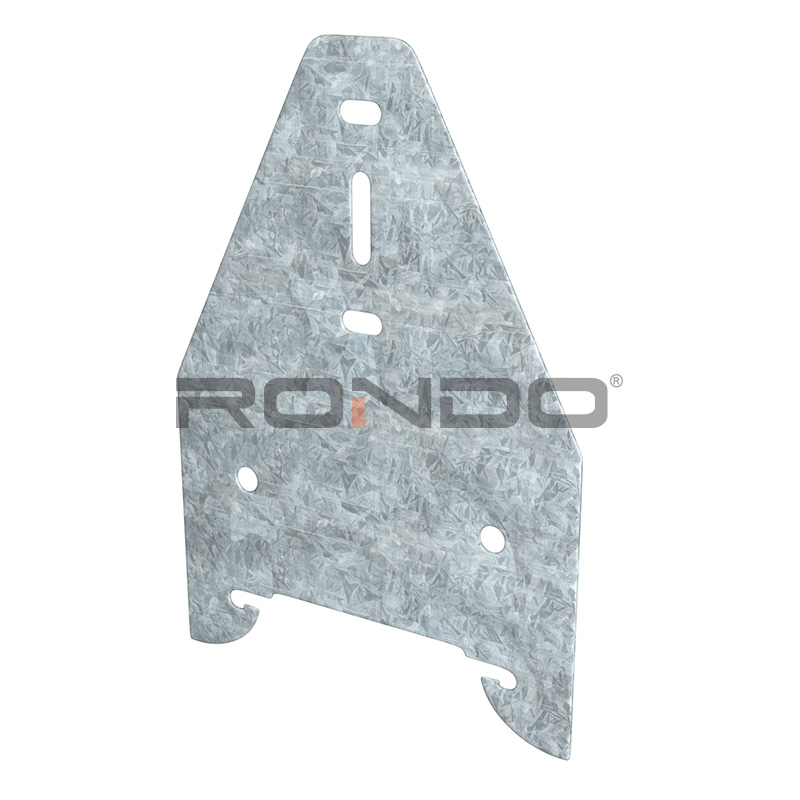

FDFS |
Direct Fix Bracket (Short) – 37mm |
|||
|

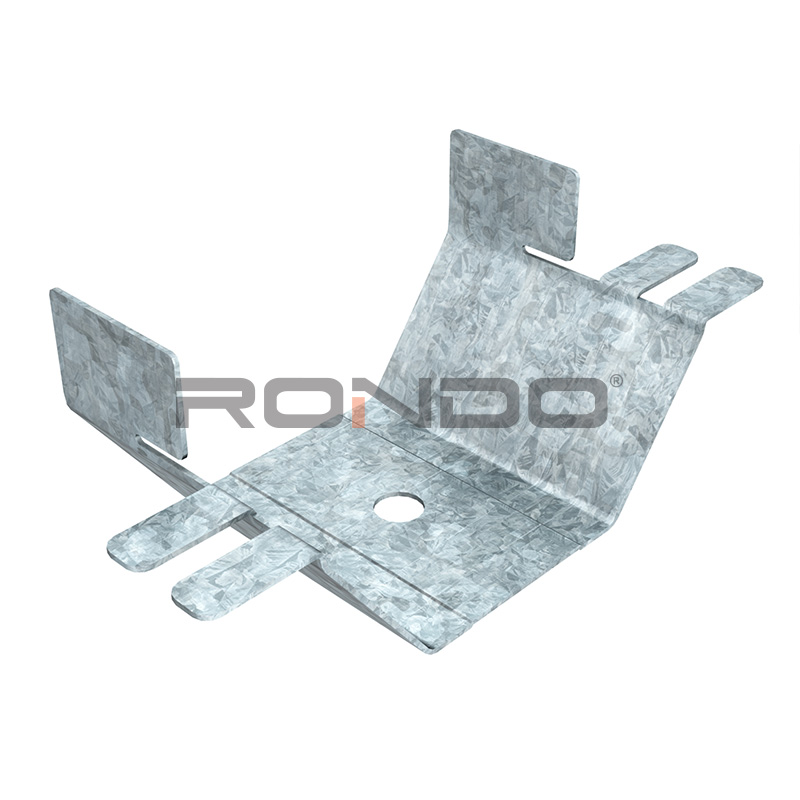

FS37 |
Furring Strap – 37mm |
|||
|

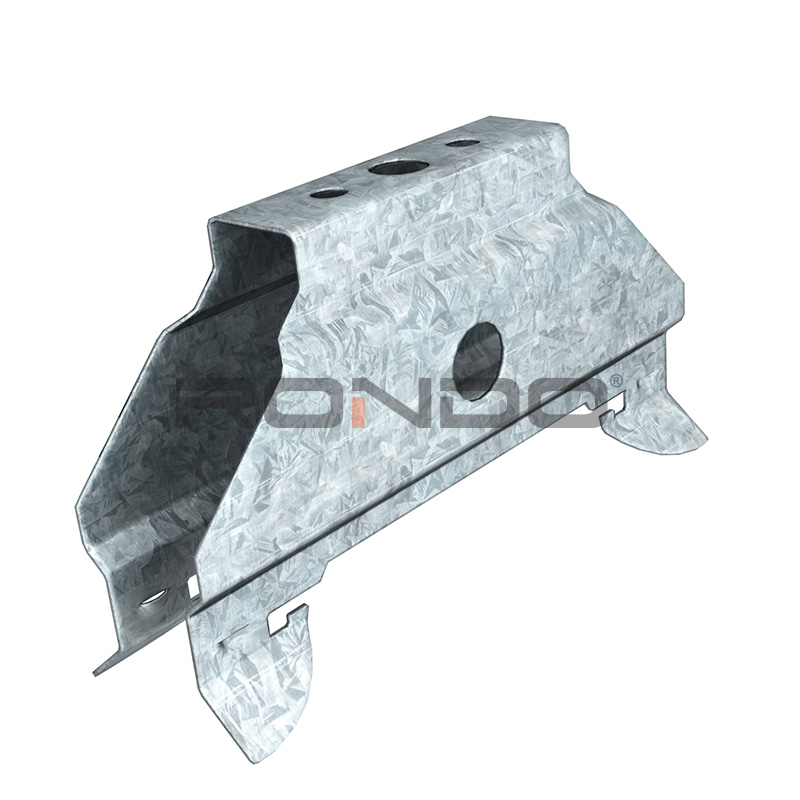

FSFC |
Snap-Fix Clip – 37mm |
|||
|

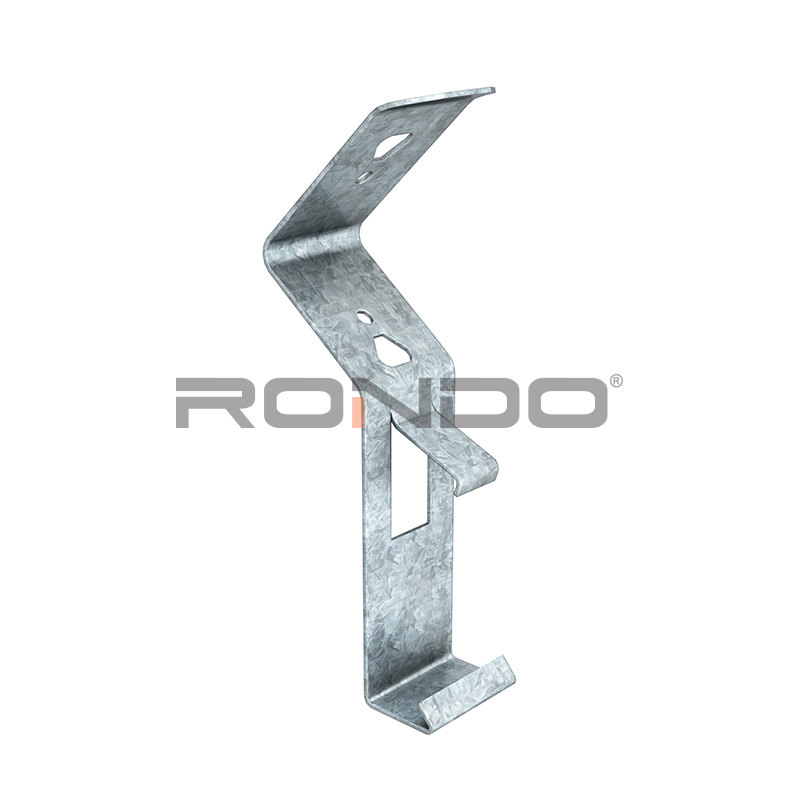

FSSC |
Suspension Clip – 94mm |
|||
|

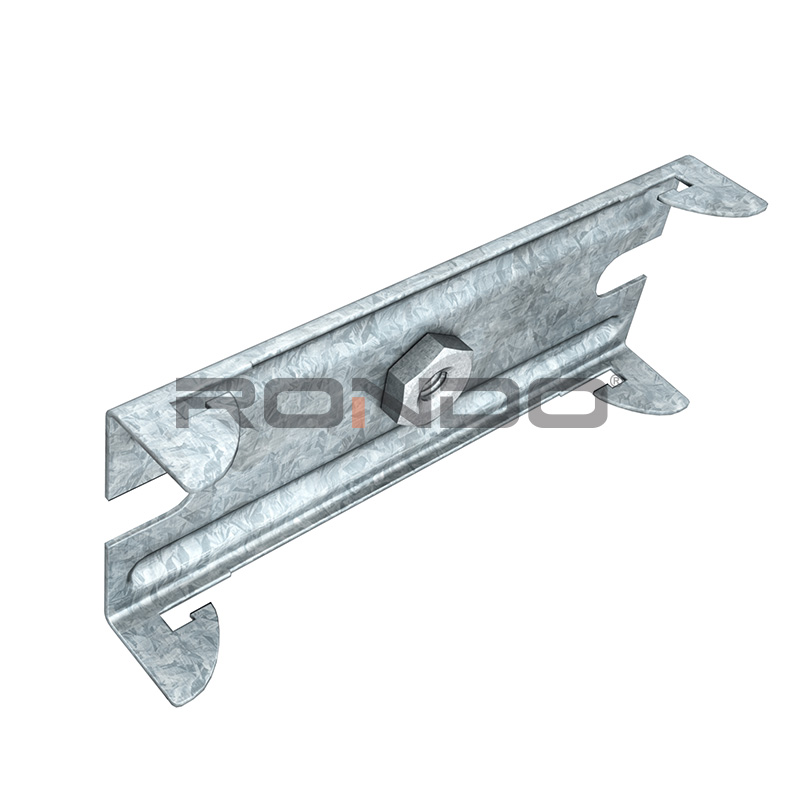

FTRC |
Threaded Rod Clip |
|||
|

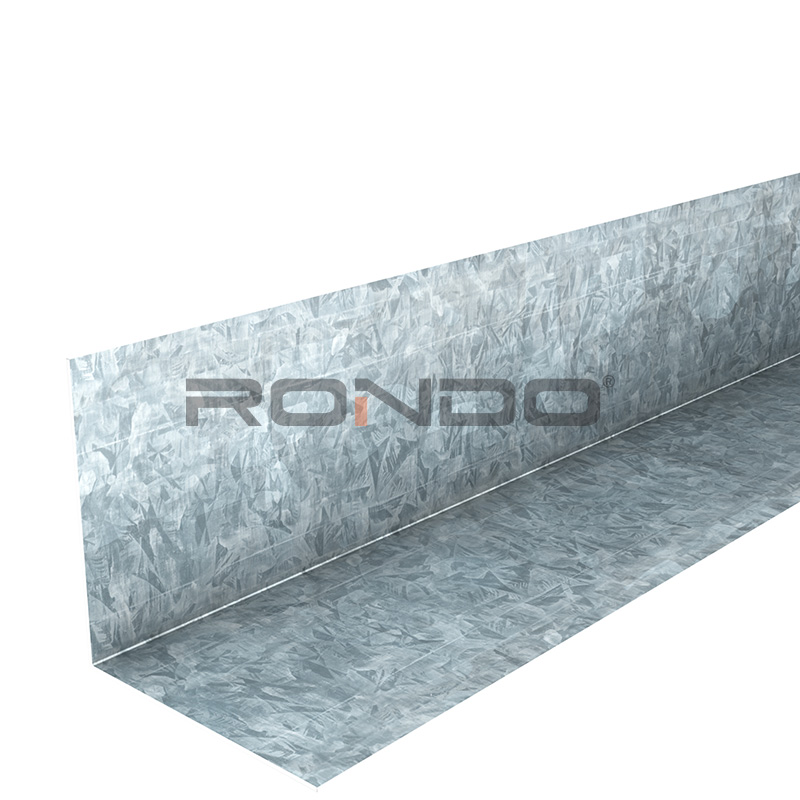

XD5 |
|
40mm (h) x 40mm (w) Wall Angle |
|
